AN-SY8105

Synchronous Step Down Regulator

AN-SY8105 Features

* low RDS(ON) for internal switches (top/bottom): 40mΩ/26mΩ

* 4.5-18V input voltage range

* 5.0A output current capability

* 500 kHz switching frequency

* Instant PWM architecture to achieve fast transient responses.

* Internal softstart limits the inr

AN-SY8105 General Description

The SY8105 is a high efficiency 500 kHz synchronous step-down DC-DC converter capable of delivering 5.0A current. The SY8105 operates over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output.

AN-SY8105 Datasheet (1.07 MB)

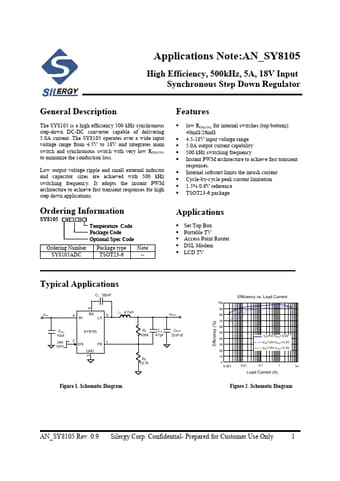

Preview of AN-SY8105 PDF

Datasheet Details

Part number:

AN-SY8105

Manufacturer:

Silergy

File Size:

1.07 MB

Description:

Synchronous step down regulator.
