AN-SY8368A Datasheet, Regulator, Silergy

AN-SY8368A Features

• Regulator
• 4.0-28V wide input voltage range
• Low RDS(ON) for internal switches: 20/10m

PDF File Details

Part number:

AN-SY8368A

Manufacturer:

Silergy

File Size:

1.40MB

Download:

📄 Datasheet

Description:

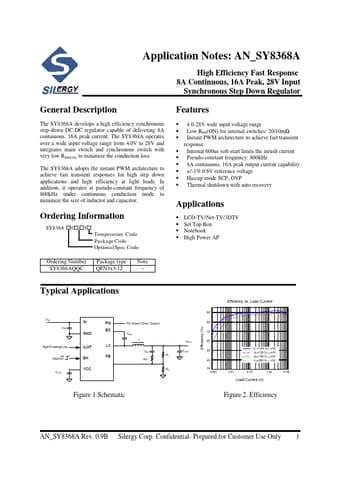

Synchronous step down regulator. The SY8368A develops a high efficiency synchronous step-down DC-DC regulator capable of delivering 8A continuous, 16A peak current.

AN-SY8368A Application

• Applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 800kHz under continuous conduction mode to
