AN-SY8003

1MHz Synchronous Step Down Regulator

AN-SY8003 Features

* Low RDS(ON) for internal switches (top/bottom):110mΩ/80mΩ

* 3A continuous load current capability

* 2.7-5.5V input voltage range

* High

AN-SY8003 General Description

The SY8003 and SY8003A are high-efficiency, high frequency synchronous step-down DC-DC regulator IC capable of delivering up to 3A output current. The SY8003 and SY8003A operate over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) t.

AN-SY8003 Datasheet (859.51 KB)

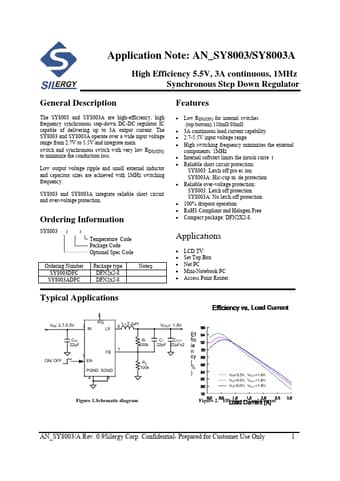

Preview of AN-SY8003 PDF

Datasheet Details

Part number:

AN-SY8003

Manufacturer:

Silergy

File Size:

859.51 KB

Description:

1mhz synchronous step down regulator.
