Single Stage Boost PFC LED Driver

SY58863 Features

* Compatible with Leading Edge/Trailing Edge Dimmer

* High PF without Any Dimmer

* 500V MOSFET Integrated

* Quasi-Resonant Operation

* Reliable Open LED Protection

* Thermal Fold Back

* Low BOM Cost

* Compact Package: SO8 Applications

* LED Lighting

* Leading

SY58863 General Description

SY58863 is a single-stage Boost PFC driver for LED lighting applications. Good compatibility is achieved with Leading/Trailing edge dimmer and high PF is achieved without any dimmer. SY58863 drives the converter in Quasi-Resonant mode to achieve high efficiency. Reliable Open LED protections are int.

SY58863 Datasheet (497.63 KB)

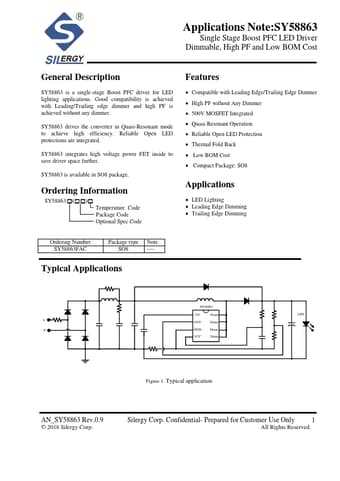

SY58863 Datasheet Preview — Preview of SY58863 PDF

Datasheet Details

Part number:

SY58863

Manufacturer:

Silergy

File Size:

497.63 KB

Description:

Single stage boost pfc led driver.
