SY7072

High Efficiency 2A Valley Current Synchronous Boost

Silergy

SY7072 Features

* 1.8V Minimum Input Voltage

* Adjustable Output Voltage from 1.8V to 5.5V

* Min 2A Valley Current Limit

* 5µA Typical Quiescent Current

* Load Disconnect During Shutdown

* Low RDS(ON) (Main Switch/Synchronous Switch) at 3.3V Output: 100/170mΩ

* Output OVP

* Auto Bypa

SY7072 General Description

SY7072 is a high efficient, synchronous, step-up Boost converter designed for one-cell Li-Ion or Li-polymer, or a two to three-cell alkaline Ni-Cd or Ni-MH battery powered applications. It can convert down to 1.8V input voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch..

SY7072 Datasheet (1.26 MB)

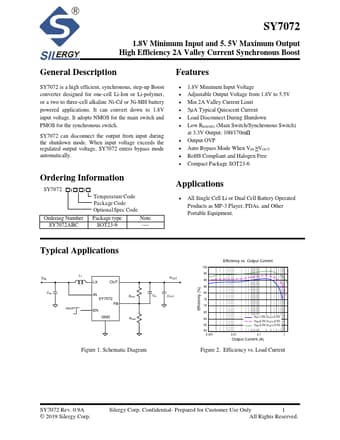

SY7072 Datasheet Preview — Preview of SY7072 PDF

Datasheet Details

Part number:

SY7072

Manufacturer:

Silergy

File Size:

1.26 MB

Description:

High efficiency 2a valley current synchronous boost.
