SY7200A Datasheet, Driver, Silergy

SY7200A Features

  • Driver
  • Input voltage range: 2.8 to 30V
  • Switch current limit 2A
  • Drives LED strings up to 30V
  • 1MHz fixed frequency minimizes the external components

PDF File Details

Part number:

SY7200A

Manufacturer:

Silergy

File Size:

561.39kb

Download:

📄 Datasheet

Description:

30v high current boost led driver. SY7200A is DC/DC step-up converter that deliver an accurate constant current for driving LEDs. Operation at a fixed switching frequen

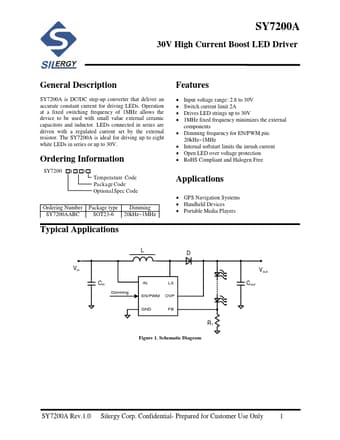

Datasheet Preview: SY7200A 📥 Download PDF (561.39kb)
Page 2 of SY7200A Page 3 of SY7200A

SY7200A Application

  • Applications Features
  • Input voltage range: 2.8 to 30V
  • Switch current limit 2A
  • Drives LED strings up to 30V
