SY7208C - 600mA Step Up Regulator

Product Overview

Silergy

Datasheet Details

Part number	SY7208C
Manufacturer	Silergy
File Size	1.13 MB
Description	600mA Step Up Regulator
Datasheet	SY7208C Datasheet

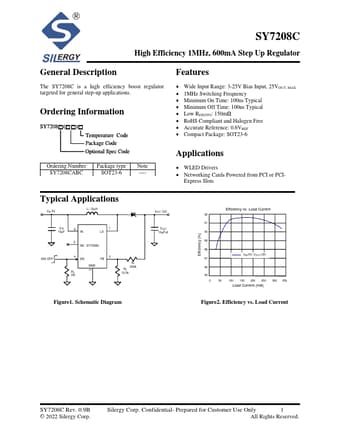

Additional preview pages of the SY7208C datasheet.

Product details

Description

The SY7208C is a high efficiency boost regulator targeted for general step-up applications. ( ) Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SY7208CABC SOT23-6 ----

Features

Wide Input Range: 3-25V Bias Input, 25VOUT, MAX.
1MHz Switching Frequency.
Minimum On Time: 100ns Typical.
Minimum Off Time: 100ns Typical.
Low RDS(ON): 150mΩ.
RoHS Compliant and Halogen Free.
Accurate Reference: 0.6VREF.
Compact Package: SOT23-6.
