SY7208L - 2A Step Up Regulator

Product Overview

Silergy

Datasheet Details

Part number	SY7208L
Manufacturer	Silergy
File Size	630.56 KB
Description	2A Step Up Regulator
Datasheet	SY7208L Datasheet

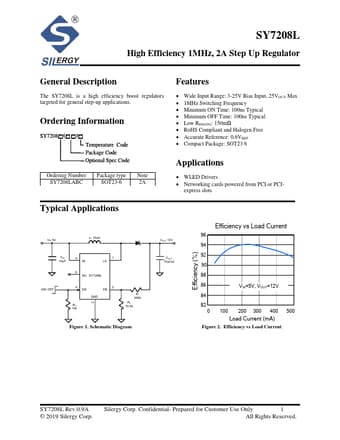

Additional preview pages of the SY7208L datasheet.

Product details

Description

The SY7208L is a high efficiency boost regulators targeted for general step-up applications. ( ) Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SY7208LABC SOT23-6 2A

Features

Wide Input Range: 3-25V Bias Input, 25VOUT Max.
1MHz Switching Frequency.
Minimum ON Time: 100ns Typical.
Minimum OFF Time: 100ns Typical.
Low RDS(ON): 150mΩ.
RoHS Compliant and Halogen Free.
Accurate Reference: 0.6VREF.
Compact Package: SOT23 6.
