SY7208 - 2A Step Up Regulator

Product Overview

Silergy

📥 Download Datasheet

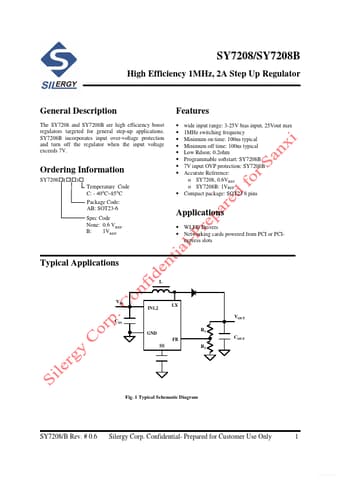

SY7208 2A Step Up Regulator by Silergy - Datasheet Preview — Datasheet preview – SY7208

Datasheet Details

Part number	SY7208
Manufacturer	Silergy
File Size	179.45 KB
Description	2A Step Up Regulator
Datasheet	SY7208 Datasheet
Additional preview pages of the SY7208 datasheet.

Product details

Description

The SY7208 and SY7208B are high efficiency boost regulators targeted for general step-up applications.

Features

wide input range: 3-25V bias input, 25Vout max 1MHz switching frequency Minimum on time: 100ns typical Minimum off time: 100ns typical Low Rdson: 0.2ohm Programmable softstart: SY7208B 7V input OVP protection: SY7208B Accurate Reference: ο SY7208, 0.6VREF ο SY7208B: 1VREF.
Compact package: SOT23 6 pins Ordering Information SY7208.
(.
).
Temperature Code C: - 40°C~85°C Package.
