SY8008A - Synchronous Step Down Regulator

Silergy

The SY8008A by Silergy is a Synchronous Step Down Regulator. Below is the official datasheet preview.

📥 Download Datasheet

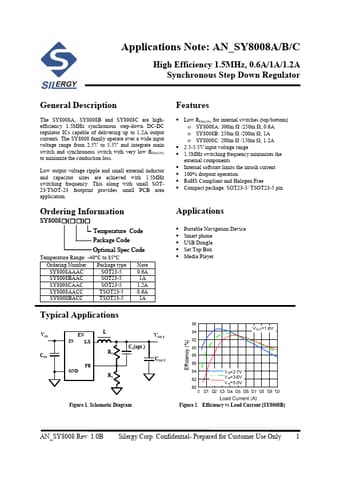

SY8008A Synchronous Step Down Regulator by Silergy - Datasheet Preview — Official preview page of the **SY8008A** Synchronous Step Down Regulator datasheet (Silergy).

Datasheet Details

Part number	SY8008A
Manufacturer	Silergy
File Size	295.02 KB
Description	Synchronous Step Down Regulator
Datasheet	SY8008A-Silergy.pdf
Additional preview pages of the SY8008A datasheet.

SY8008A Product details

Description

The SY8008A, SY8008B and SY8008C are highefficiency 1.5MHz synchronous step-down DC-DC regulator ICs capable of delivering up to 1.2A output currents.

Features

low Rds(on) for internal switches (top/bottom) ο SY8008A: 300m Ω /250m Ω, 0.6A ο SY8008B: 250m Ω /200m Ω, 1A ο SY8008C: 200m Ω /150m Ω, 1.2A.
2.5-5.5V input voltage range.
1.5MHz switching frequency minimizes the external components.
Internal softstart limits the inrush current.
100% dropout operation.
RoHS Compliant and Halogen Free.
Compact package: SOT23-5/ TSOT23-5 pin Ordering Information.
