SY8008C, SY8008A Synchronous Step Down Regulator

SY8008C Description

- 0755-83307717 www.ping-web.com sales@ping-web.com SY8008A/SY8008B/SY8008C High Efficiency 1.5MHz, 0.6A/1A/1.2A Synchronous Step Down Regulator.
The SY8008A, SY8008B and SY8008C are highefficiency 1.

SY8008C Features

* low Rds(on) for internal switches (top/bottom) ο SY8008A: 300m Ω /250m Ω, 0.6A ο SY8008B: 250m Ω /200m Ω, 1A ο SY8008C: 200m Ω /150m Ω, 1.2A
* 2.5-5.5V input voltage range
* 1.5MHz switching frequency minimizes the external components
* Internal softstart limits the

SY8008C Applications

* Portable Navigation Device Smart phone USB Dongle Set Top Box Media Player SY8008
* (
* )
* Temperature Code C: -40°C~85°C Package Code: AA:SOT23-5 AC:TSOT23-5 Spec Code Typical Applications VIN IN EN LX L C1(opt. ) VOU

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SY8008C, SY8008A. Please refer to the document for exact specifications by model.

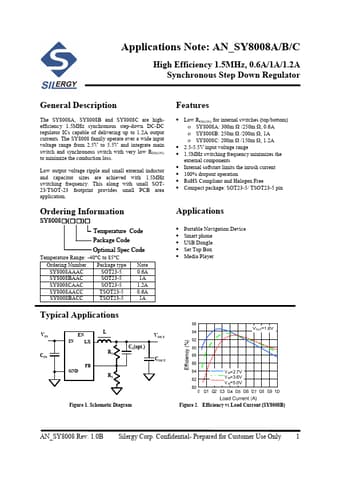

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8008C, SY8008A
Manufacturer
Silergy
File Size
295.02 KB
Datasheet
SY8008A-Silergy.pdf
Description
Synchronous Step Down Regulator
Note
This datasheet PDF includes multiple part numbers: SY8008C, SY8008A.
Please refer to the document for exact specifications by model.
