SY8284 Synchronous Step Down Regulator

📥 Download Datasheet  Datasheet Preview Page 1

Description

SY8284 High Efficiency Fast Response, 4A, 23V Input Synchronous Step Down Regulator General .
The SY8284 develops a high efficiency synchronous step-down DC/DC regulator capable of delivering 4A current over a wide input voltage range of 4V to.

📥 Download Datasheet

Preview of SY8284 PDF

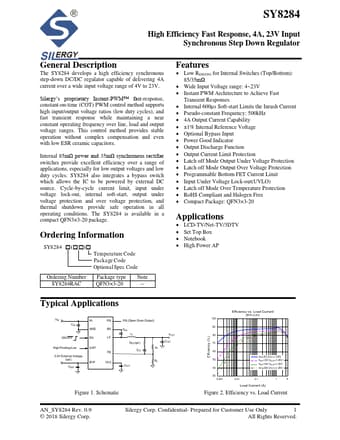

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SY8284
Manufacturer
Silergy
File Size
490.19 KB
Datasheet
SY8284-Silergy.pdf
Description
Synchronous Step Down Regulator

Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 85/35mΩ
* Wide Input Voltage range: 4~23V
* Instant PWM Architecture to Achieve Fast Transient Responses
* Internal 600µs Soft-start Limits the Inrush Current
* Pseudo-constant Frequency: 500kHz
* 4A Output Current Capability

Applications

* especially for low output voltages and low duty cycles. SY8284 also integrates a bypass switch which allows the IC to be powered by external DC source. Cycle-by-cycle current limit, input under voltage lock-out, internal soft-start, output under voltage protection and over voltage protection, and t
