SY8284B

23V Input Synchronous Step Down Regulator

SY8284B Features

* Low RDS(ON) for Internal Switches (top/bottom): 85/35 mΩ

* Wide Input Voltage Range: 4~23V

* Integrated Bypass Switch: 1.5Ω

* Instant PWM Architecture to Achieve Fast Transient Responses

* Internal 1.2ms Soft-start Limits the Inrush Current

* Pseudo-

SY8284B General Description

The SY8284B develops a high efficiency synchronous step-down DC/DC regulator capable of delivering 4A current. The device integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. In addition, it operates at pseudoconstant frequency of 600kHz under heavy lo.

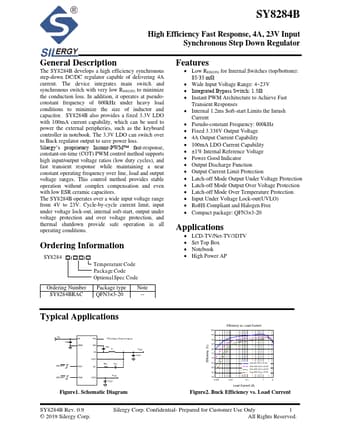

SY8284B Datasheet (279.88 KB)

Preview of SY8284B PDF

Datasheet Details

Part number:

SY8284B

Manufacturer:

Silergy

File Size:

279.88 KB

Description:

23v input synchronous step down regulator.
