SY8286

Synchronous Step Down Regulator

SY8286 Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 38/19 mΩ

* Wide Input Voltage Range: 4-23V

* Output Voltage Range: 0.6~2.5V

* External Bypass Input

* Instant PWM Architecture to Achieve Fast Transient Responses

* Internal 400μs Soft-start Limits the Inrush Current

* Pse

SY8286 General Description

The SY8286 develops a high efficiency synchronous step-down DC/DC regulator capable of delivering 6A continuous, 12A peak current. The device integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. SY8286 also integrates a bypass switch which allows the .

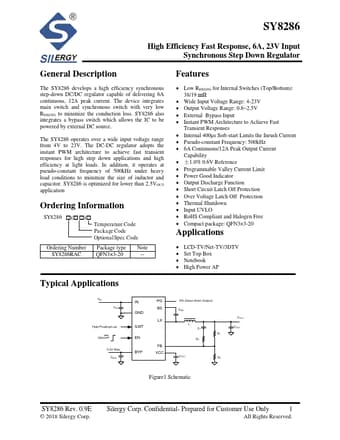

SY8286 Datasheet (484.80 KB)

Preview of SY8286 PDF

Datasheet Details

Part number:

SY8286

Manufacturer:

Silergy

File Size:

484.80 KB

Description:

Synchronous step down regulator.
