SY8286C

Synchronous Step Down Regulator

SY8286C Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 38/19 mΩ

* Wide Input Voltage Range: 5.5-23V

* 5V LDO with Individual Enable Control and Bypass Switch

* Integrated Bypass Switch: 1.5Ω

* Instant PWM Architecture to Achieve Fast Transient Responses

* Internal 1.2ms Soft-start

SY8286C General Description

The SY8286C develops a high efficiency synchronous step-down DC/DC regulator capable of delivering 6A current. The device integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY8286C has a fixed 5V DC/DC output and integrates a 5V 100mA LDO with .

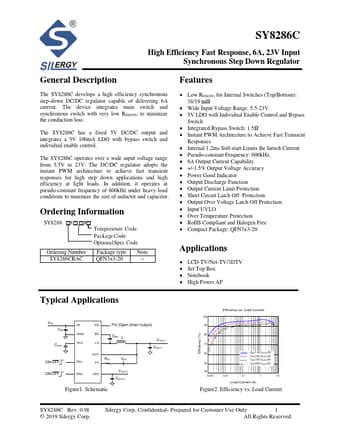

SY8286C Datasheet (966.50 KB)

Preview of SY8286C PDF

Datasheet Details

Part number:

SY8286C

Manufacturer:

Silergy

File Size:

966.50 KB

Description:

Synchronous step down regulator.
