SSF20NS65F

MOSFET

SSF20NS65F Features

* TO220F  Feathers:

* High dv/dt and avalanche capabilities

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance   SSF20NS65F    Marking and pin Assignment  Schematic diagram        Description: The SSF20NS65F series MOSF

SSF20NS65F General Description

The SSF20NS65F series MOSFETs is a new technology. which combines an innovative super junction technology and advance process. this new technology achieves low Rdson, energy saving, high reliability and uniformity, superior power density and space saving  Absolute max Rating: Symbol ID @ TC = 25°.

SSF20NS65F Datasheet (377.10 KB)

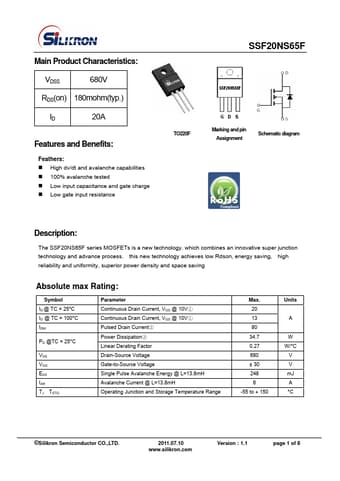

Preview of SSF20NS65F PDF

Datasheet Details

Part number:

SSF20NS65F

Manufacturer:

Silikron

File Size:

377.10 KB

Description:

Mosfet.
