STK12C68 - 8Kx8 AutoStore nvSRAM

Datasheet Summary

Description

The Simtek STK12C68 is a 64Kb fast static RAM with a non-volatile Quantum Trap storage element included with each memory cell.

The SRAM provides the fast access & cycle times, ease of use and unlimited read & write endurance of a normal SRAM.

Features

  • 25, 35, 45, 55 ns Read Access & Write Cycle Time.
  • Unlimited Read/Write Endurance.
  • Automatic Non-volatile STORE on Power Loss.
  • Non-Volatile STORE Under Hardware or Software Control.
  • Automatic RECALL to SRAM on Power Up.
  • Unlimited RECALL Cycles.
  • 1 Million STORE Cycles.
  • 100-Year Non-volatile Data Retention.
  • Single 5V ± 10% Power Supply.
  • Commercial, Industrial, Military Temperatures.
  • 28-pin 330-mil SO.

📥 Download Datasheet

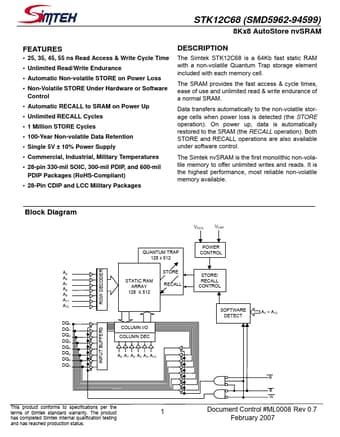

Datasheet preview – STK12C68

Datasheet Details

Part number STK12C68
Manufacturer Simtek
File Size 378.71 KB
Description 8Kx8 AutoStore nvSRAM
Datasheet download datasheet STK12C68 Datasheet
Additional preview pages of the STK12C68 datasheet.

📁 Similar Datasheet

  • STK12C68 - 64 Kbit (8 K x 8) AutoStore nvSRAM (Cypress Semiconductor)
  • STK1262B - Digital Camera Controller (Syntek)
  • STK12N05L - (STK12N05L / STK12N06L) N - CHANNEL ENHANCEMENT MODE LOW THRESHOLD POWER MOS TRANSISTOR (STMicroelectronics)
  • STK12N06L - (STK12N05L / STK12N06L) N - CHANNEL ENHANCEMENT MODE LOW THRESHOLD POWER MOS TRANSISTOR (STMicroelectronics)
  • STK103 - N-Channel MOSFET (SamHop Microelectronics)
  • STK1030 - AF Power Amplifier Output Stage (ETC)
  • STK1030 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1035 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1039 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1040 - (STKxxxx) Output Stage of AF Power Amp (ETC)
Other Datasheets by Simtek
  • STK12C68-M - CMOS NV SRAM 8K X 8 AUTOSTORE NONVOLATILE STATIC RAM
  • STK10C48 - 2K X 8 NVSRAM
  • STK10C68 - 8K x 8 nvSRAM
  • STK11C48 - 8K x 8 nvSRAM QuantumTrap CMOS Nonvolatile Static RAM
  • STK11C68 - 8K x 8 nvSRAM QuantumTrap CMOS Nonvolatile Static RAM
  • STK11C68-M - CMOS NV SRAM
  • STK11C88 - 32Kx8 SoftStore nvSRAM
  • STK11C88-3 - 32K X 8 NVSRAM 3.3 V QUANTUM TRAP CMOS NONVOLATILE STATIC RAM

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com STK12C68 (SMD5962-94599) 8Kx8 AutoStore nvSRAM DESCRIPTION The Simtek STK12C68 is a 64Kb fast static RAM with a non-volatile Quantum Trap storage element included with each memory cell. The SRAM provides the fast access & cycle times, ease of use and unlimited read & write endurance of a normal SRAM. Data transfers automatically to the non-volatile storage cells when power loss is detected (the STORE operation). On power up, data is automatically restored to the SRAM (the RECALL operation). Both STORE and RECALL operations are also available under software control. The Simtek nvSRAM is the first monolithic non-volatile memory to offer unlimited writes and reads. It is the highest performance, most reliable non-volatile memory available.
