STK12C68-M - CMOS NV SRAM 8K X 8 AUTOSTORE NONVOLATILE STATIC RAM

Datasheet Summary

Description

The Simtek STK12C68-M is a fast static RAM (40, 45 and 55ns), with a nonvolatile EEPROM element incorporated in each static memory cell.

The SRAM can be read and written an unlimited number of times, while independent nonvolatile data resides in EEPROM.

Features

  • 40, 45 and 55ns Access Times.
  • 15 mA ICC at 200ns Access Speed.
  • Automatic STORE to EEPROM on Power Down.
  • Hardware or Software initiated STORE to EEPROM.

📥 Download Datasheet

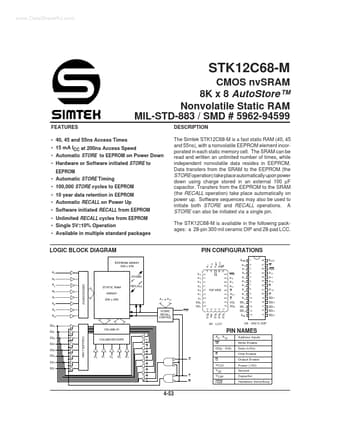

Datasheet preview – STK12C68-M

Datasheet Details

Part number STK12C68-M
Manufacturer Simtek
File Size 99.42 KB
Description CMOS NV SRAM 8K X 8 AUTOSTORE NONVOLATILE STATIC RAM
Datasheet download datasheet STK12C68-M Datasheet
Additional preview pages of the STK12C68-M datasheet.
