SM4301PSKP

P-Channel MOSFET

SM4301PSKP Features

* -30V/-90A, RDS(ON) =6.4mW(max.) @ VGS =-10V RDS(ON) =12mW(max.) @ VGS =-4.5V

* 100% UIS + Rg Tested

* Reliable and Rugged

* Lead Free and Green Devices Available (RoHS Compliant)

* HBM ESD protection level of 2.6KV typical Pin Description DDDD S S SG DFN5x6A-8_EP ( 5,6,7,8 )

SM4301PSKP General Description

DDDD S S SG DFN5x6A-8_EP ( 5,6,7,8 ) D D DD Pin 1 Applications (4) G
* Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems. SSS (1, 2, 3) P-Channel MOSFET Ordering and Marking Information SM4301PS Assembly Material Handling Code Temperature Range Packa.

SM4301PSKP Datasheet (262.89 KB)

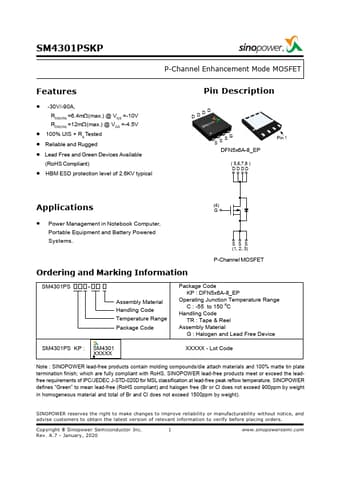

Preview of SM4301PSKP PDF

Datasheet Details

Part number:

SM4301PSKP

Manufacturer:

Sinopower

File Size:

262.89 KB

Description:

P-channel mosfet.
