SM4301PSU - P-Channel MOSFET

Datasheet Summary

Description

D S G Top View of TO-252 S D G Top View of TO-251 D G Applications

Power Management in LCD TV Inverter.

Features

  • -30V/-88A, RDS(ON)= 6.5mW (max. ) @ VGS=-10V RDS(ON)= 11.5mW (max. ) @ VGS=-4.5V.
  • Reliable and Rugged.
  • Lead Free and Green Devices Available (RoHS Compliant).
  • HBM ESD capability level of 2.6KV typical Note : The diode connected between the gate and source serves only as protection against ESD. No gate overvoltage rating is implied. Pin.

📥 Download Datasheet

Datasheet preview – SM4301PSU

Datasheet Details

Part number SM4301PSU
Manufacturer Sinopower
File Size 296.83 KB
Description P-Channel MOSFET
Datasheet download datasheet SM4301PSU Datasheet
Additional preview pages of the SM4301PSU datasheet.

📁 Similar Datasheet

  • SM4301 - 440 WATT BATTERY CONVERTERS (CUSTOM POWER DESIGN)
  • SM4300 - 440 WATT BATTERY CONVERTERS (CUSTOM POWER DESIGN)
  • SM4302 - 440 WATT BATTERY CONVERTERS (CUSTOM POWER DESIGN)
  • SM4303 - 440 WATT BATTERY CONVERTERS (CUSTOM POWER DESIGN)
  • SM4303PSKC-TRG - P-Channel 30V MOSFET (VBsemi)
  • SM4304 - 440 WATT BATTERY CONVERTERS (CUSTOM POWER DESIGN)
  • SM4305 - 440 WATT BATTERY CONVERTERS (CUSTOM POWER DESIGN)
  • SM4305PSKC-TRG - P-Channel 30V MOSFET (VBsemi)
  • SM4306 - 440 WATT BATTERY CONVERTERS (CUSTOM POWER DESIGN)
  • SM4307 - 440 WATT BATTERY CONVERTERS (CUSTOM POWER DESIGN)
Other Datasheets by Sinopower

Full PDF Text Transcription

Click to expand full text

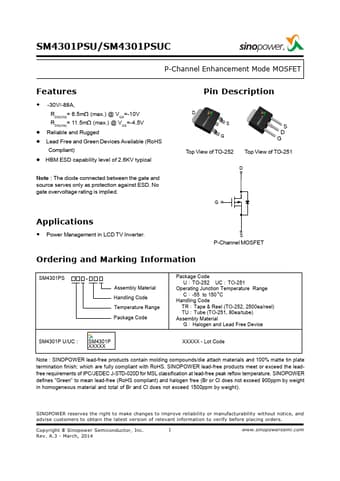

SM4301PSU/SM4301PSUC ® P-Channel Enhancement Mode MOSFET Features · -30V/-88A, RDS(ON)= 6.5mW (max.) @ VGS=-10V RDS(ON)= 11.5mW (max.) @ VGS=-4.5V · Reliable and Rugged · Lead Free and Green Devices Available (RoHS Compliant) · HBM ESD capability level of 2.6KV typical Note : The diode connected between the gate and source serves only as protection against ESD. No gate overvoltage rating is implied. Pin Description D S G Top View of TO-252 S D G Top View of TO-251 D G Applications · Power Management in LCD TV Inverter.
