SM4301PSUC, SM4301PSU - P-Channel MOSFET

SM4301PSUC Description

SM4301PSU/SM4301PSUC ® P-Channel Enhancement Mode MOSFET .
D S G Top View of TO-252 S D G Top View of TO-251 D G Applications. Power Management in LCD TV Inverter.

SM4301PSUC Features

* -30V/-88A, RDS(ON)= 6.5mW (max. ) @ VGS=-10V RDS(ON)= 11.5mW (max. ) @ VGS=-4.5V
* Reliable and Rugged
* Lead Free and Green Devices Available (RoHS Compliant)
* HBM ESD capability level of 2.6KV typical Note : The diode connected between the gate and source serves only as protection

SM4301PSUC Applications

* Power Management in LCD TV Inverter. S P-Channel MOSFET Ordering and Marking Information SM4301PS Assembly Material Handling Code Temperature Range Package Code Package Code U：TO-252 UC：TO-251 Operating Junction Temperature Range C：-55 to 150 oC Handling Code TR：Tape & Reel (TO-252, 2500e

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM4301PSUC, SM4301PSU. Please refer to the document for exact specifications by model.

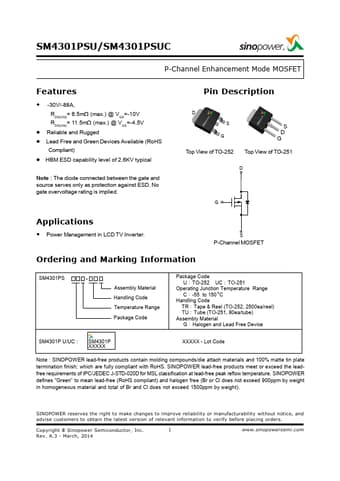

datasheet Preview Page 2 datasheet Preview Page 3
