SM4303PSKC-TRG, P-Channel 30V MOSFET

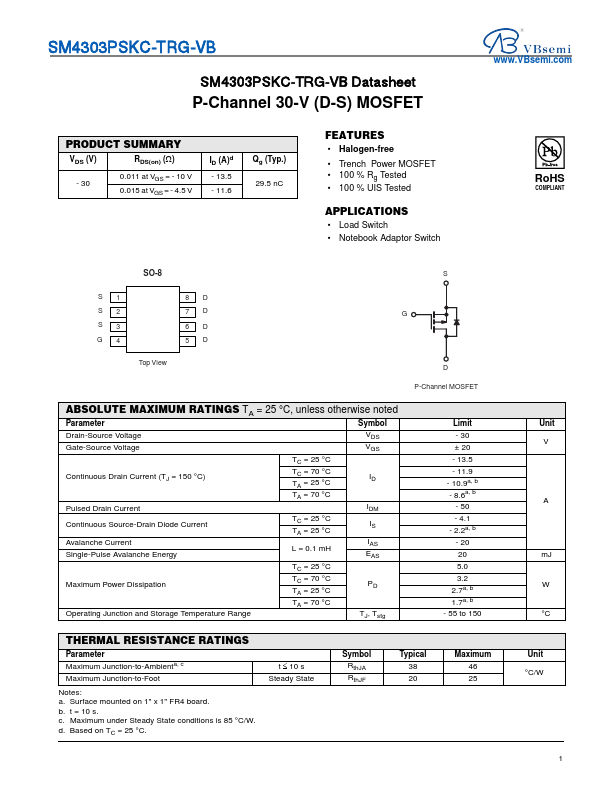

SM4303PSKC-TRG-VB SM4303PSKC-TRG-VB Datasheet P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.011 at VGS = - 10 V 0.015

Features

* Halogen-free
* Trench Power MOSFET
* 100 % Rg Tested

Applications

* Load Switch
* Notebook Adaptor Switch www.
VBsemi.
com RoHS COMPLIANT SO-8 S S1 8D S2 7D G S3 6D G4 5D Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC =
