SP4415 - Electroluminescent Lamp Driver with Selectable Level Outputs

Product Overview

Sipex Corporation

Part number	SP4415
Manufacturer	Sipex Corporation
File Size	358.04 KB
Description	Electroluminescent Lamp Driver with Selectable Level Outputs
Datasheet	SP4415 Datasheet

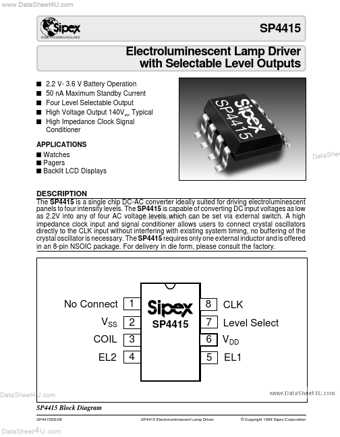

Additional preview pages of the SP4415 datasheet.

The SP4415 is a single chip DC-AC converter ideally suited for driving electroluminescent panels to four intensity levels.

high impedance (50 MΩ), low capacitance (2.5pF) and 200mV sensitivity. The external clock should range from (VDD-1V) to ground. The SP4415 is optimized for 32,768Hz clock signals and is allowed to vary from 20 kHz to 60kHz. The externally supplied clock signal provides the circuit with a clock source used to control the charge and discharge phases for the coil and lamp. The suggested oscillator frequency is 32,768Hz . This clock frequency is internally divided to create two internal control sign.
