SP4400 Datasheet - SamHop Microelectronics

SP4400 Dual N-Channel Enhancement Mode Field Effect Transistor

Green Product Sa mHop Microelectronics C orp. Dual N-Channel Enhancement Mode Field Effect Transistor SP4400 Ver 1.0 PRODUCT SUMMARY (DIE 1) VDSS ID RDS(ON) (mΩ) Max 40V 28A 23 @ VGS=10V 34 @ VGS=4.5V PRODUCT SUMMARY (DIE 2) VDSS ID RDS(ON) (mΩ) Max 40V 66A 10 @ VGS=10V 15 @ VGS=4.5V G2 S2 S2 S2 S1/D2 PDFN 5x6 G1 D1 D1 D1 S2 5 S2 6 S2 7 G2 8 S1/D2 4 D1 3 D1 2 D1 1 G1 ABSOLUTE MAXIMUM RATINGS (TC=25°C unless otherwise noted) Symbol Parameter VDS Drain-Source Voltage VGS .

SP4400-SamHopMicroelectronics.pdf

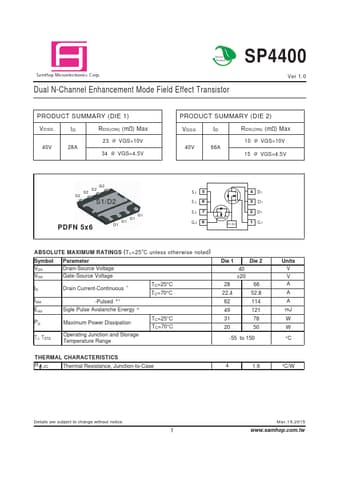

Preview of SP4400 PDF
SP4400 Datasheet Preview Page 2 SP4400 Datasheet Preview Page 3

Datasheet Details

Part number:

SP4400

Manufacturer:

SamHop Microelectronics

File Size:

127.04 KB

Description:

Dual n-channel enhancement mode field effect transistor.
