SP44-8 SAW Filter Electrical Characteristic

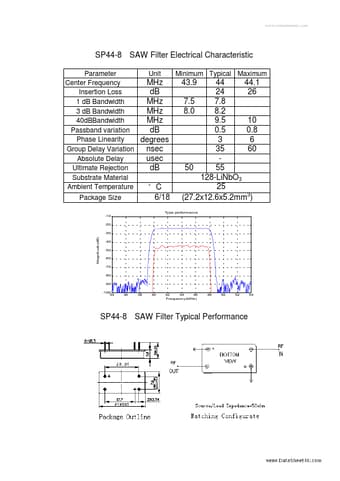

www.DataSheet4U.com SP44-8 SAW Filter Electrical Characteristic Parameter Unit Minimum Typical Maximum Center Frequency MHz 43.9 44 44.1 Insertion Loss dB 24 26 1 dB Bandwidth MHz 7.5 7.8 3 dB Bandwidth MHz 8.0 8.2 40dBBandwidth MHz 9.5 10 Passband variation dB 0.5 0.8 Phase Linearity degrees 3 6 Group Delay Variation nsec 35 60 Absolute Delay usec Ultimate Rejection dB 50 55 Substrate Material 128-LiNbO3 25 Ambient Temperature C Package Size -10 -20 -30 Magnitude(dB) -40 -50 -60 -70 -80 -90 -1.

SP44-8 Datasheet (38.91 KB)

SP44-8 Datasheet Preview — Preview of SP44-8 PDF

Datasheet Details

Part number:

SP44-8

Manufacturer:

SIPAT

File Size:

38.91 KB

Description:

Saw filter electrical characteristic.
