SP4414 - Low Cost Electroluminescent Lamp Driver

Product Overview

Sipex

Datasheet Details

Part number	SP4414
Manufacturer	Sipex
File Size	137.70 KB
Description	Low Cost Electroluminescent Lamp Driver
Datasheet	SP4414 Datasheet
Additional preview pages of the SP4414 datasheet.

Product details

Description

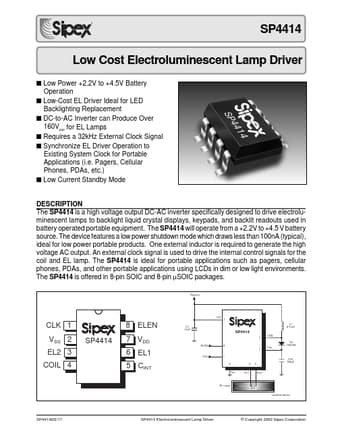

The SP4414 is a high voltage output DC-AC inverter specifically designed to drive electroluminescent lamps to backlight liquid crystal displays, keypads, and backlit readouts used in battery operated portable equipment.

Features

a low power shutdown mode which draws less than 100nA (typical), ideal for low power portable products. One external inductor is required to generate the high voltage AC output. An external clock signal is used to drive the internal control signals for the coil and EL lamp. The SP4414 is ideal for portable.
