SP446 Datasheet - SIPAT

SP446 BB Filters

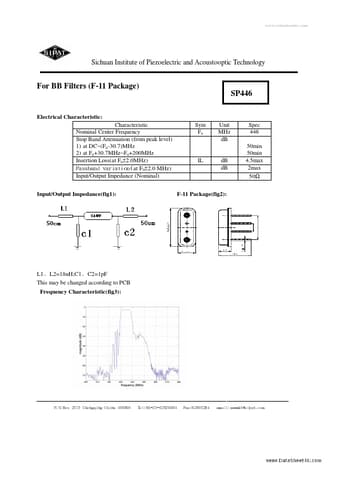

www.DataSheet4U.com Sichuan Institute of Piezoelectric and Acoustooptic Technology For BB Filters (F-11 Package) SP446 Electrical Characteristic: Characteristic Nominal Center Frequency Stop Band Attenuation (from peak level) 1) at DC~(F0-30.7)MHz 2) at F0+30.7MHz~F0+200MHz Insertion Loss(at F0±2.0MHz) 3DVVEDQG YDULDWLRQ at F0±2.0 MHz) Input/Output Impedance (Nominal) Input/Output Impedance(fig1): Sym F0 Unit MHz dB Spec 446 50min 50min 4.5max 2max 50Ω IL dB dB F-11 Package(fig2): L1 L2=1.

SP446 Datasheet (53.50 KB)

SP446 Datasheet Preview — Preview of SP446 PDF

Datasheet Details

Part number:

SP446

Manufacturer:

SIPAT

File Size:

53.50 KB

Description:

Bb filters.
