SP4405 - Low Voltage Electroluminescent Lamp Driver with Regulated Output Voltage

Product Overview

Sipex

Datasheet Details

Part number	SP4405
Manufacturer	Sipex
File Size	158.79 KB
Description	Low Voltage Electroluminescent Lamp Driver with Regulated Output Voltage
Datasheet	SP4405 Datasheet

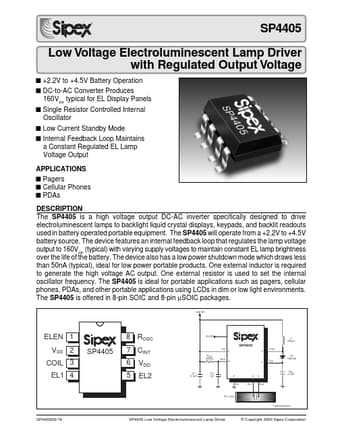

Additional preview pages of the SP4405 datasheet.

Product details

Description

The SP4405 is a high voltage output DC-AC inverter specifically designed to drive electroluminescent lamps to backlight liquid crystal displays, keypads, and backlit readouts used in battery operated portable equipment.

Features

an internal feedback loop that regulates the lamp voltage output to 160VPP (typical) with varying supply voltages to maintain constant EL lamp brightness over the life of the battery. The device also has a low power shutdown mode which draws less than 50nA (typical), ideal for low power portable products. One external inductor is required to generate the high voltage AC output. One external resistor is used to set the internal oscillator frequency. The SP4405 is ideal for portable.
