SP4422A - Electroluminescent Lamp Driver

Product Overview

Sipex

Part number	SP4422A
Manufacturer	Sipex
File Size	136.85 KB
Description	Electroluminescent Lamp Driver
Datasheet	SP4422A Datasheet

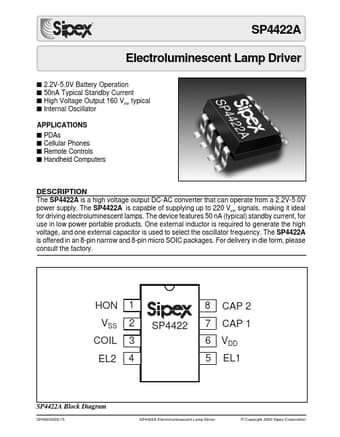

Additional preview pages of the SP4422A datasheet.

The SP4422A is a high voltage output DC-AC converter that can operate from a 2.2V-5.0V power supply.

50 nA (typical) standby current, for use in low power portable products. One external inductor is required to generate the high voltage, and one external capacitor is used to select the oscillator frequency. The SP4422A is offered in an 8-pin narrow and 8-pin micro SOIC packages. For delivery in die form, please consult the factory. HON VSS COIL EL2 1 2 3 4 SP4422 8 7 6 5 CAP 2 CAP 1 VDD EL1 SP4422A Block Diagram SP4422ADS/15 SP4422A Electroluminescent Lamp Driver © Copyright 2000 Sipex Cor.
