SP4424 - Electroluminescent Lamp Driver Dual Oscillators

Product Overview

Sipex

Part number	SP4424
Manufacturer	Sipex
File Size	119.15 KB
Description	Electroluminescent Lamp Driver Dual Oscillators
Datasheet	SP4424 Datasheet

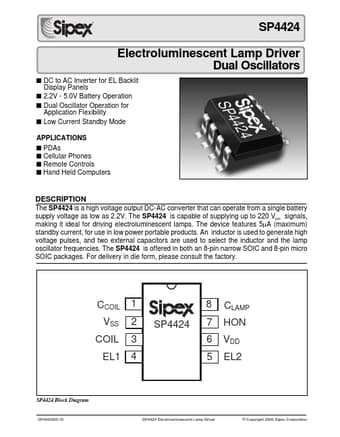

Additional preview pages of the SP4424 datasheet.

The SP4424 is a high voltage output DC-AC converter that can operate from a single battery supply voltage as low as 2.2V.

5µA (maximum) standby current, for use in low power portable products. An inductor is used to generate high voltage pulses, and two external capacitors are used to select the inductor and the lamp oscillator frequencies. The SP4424 is offered in both an 8-pin narrow SOIC and 8-pin micro SOIC packages. For delivery in die form, please consult the factory. CCOIL VSS COIL EL1 1 2 3 4 SP4424 8 7 6 5 CLAMP HON VDD EL2 SP4424 Block Diagram SP4424DS/16 SP4424 Electroluminescent Lamp Driver © Co.
