SP4425 - Electroluminescent Lamp Driver Low Voltage Applications

Product Overview

Sipex

Part number	SP4425
Manufacturer	Sipex
File Size	176.51 KB
Description	Electroluminescent Lamp Driver Low Voltage Applications
Datasheet	SP4425 Datasheet

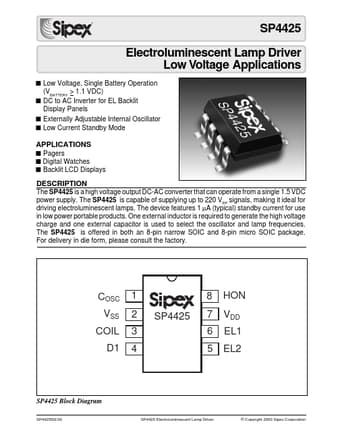

Additional preview pages of the SP4425 datasheet.

The SP4425 is a high voltage output DC-AC converter that can operate from a single 1.5 VDC power supply.

1 µA (typical) standby current for use in low power portable products. One external inductor is required to generate the high voltage charge and one external capacitor is used to select the oscillator and lamp frequencies. The SP4425 is offered in both an 8-pin narrow SOIC and 8-pin micro SOIC package. For delivery in die form, please consult the factory. COSC VSS COIL D1 1 2 3 4 SP4425 8 7 6 5 HON VDD EL1 EL2 SP4425 Block Diagram SP4425DS/20 SP4425 Electroluminescent Lamp Driver © Copyrigh.
