SP4423 - Electroluminescent Lamp Driver Low Power Applications

Product Overview

Sipex

Part number	SP4423
Manufacturer	Sipex
File Size	180.86 KB
Description	Electroluminescent Lamp Driver Low Power Applications
Datasheet	SP4423 Datasheet

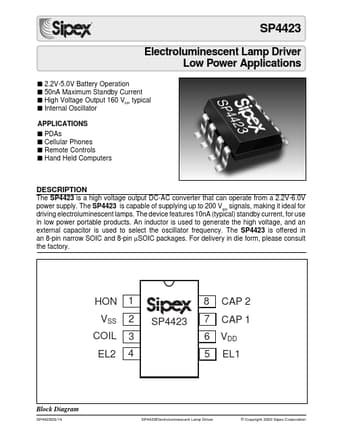

Additional preview pages of the SP4423 datasheet.

The SP4423 is a high voltage output DC-AC converter that can operate from a 2.2V-6.0V power supply.

10nA (typical) standby current, for use in low power portable products. An inductor is used to generate the high voltage, and an external capacitor is used to select the oscillator frequency. The SP4423 is offered in an 8-pin narrow SOIC and 8-pin µSOIC packages. For delivery in die form, please consult the factory. HON VSS COIL EL2 1 2 3 4 SP4423 8 7 6 5 CAP 2 CAP 1 VDD EL1 Block Diagram SP4423DS/14 SP4423Electroluminescent Lamp Driver © Copyright 2000 Sipex Corporation 1.
