MBR30100PT Schottky Barrier Rectifier

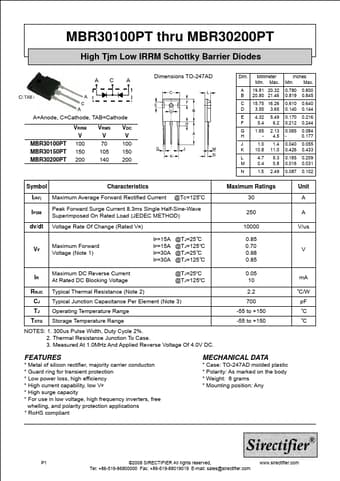

MBR30100PT thru MBR30200PT High Tjm Low IRRM Schottky Barrier Diodes AC A C(TAB) A C A A=Anode, C=Cathode, TAB=Cathode VRRM VRMS VDC V V V MBR30100PT 100 70 100 MBR30150PT 150 105 150 MBR30200PT 200 140 200 Dimensions TO-247AD Dim. Millimeter Min. Max. A 19.81 20.32 B 20.80 21.46 C 15.75 16.26 D 3.55 3.65 E 4.32 5.49 F 5.4 6.2 G 1.65 2.13 H - 4.5 J 1.0 1.4 K 10.8 11.0 L 4.7 5.3 M 0.4 0.8 N 1.5 2.49 Inches Min. Max. 0.780 0.800 0.819 0.845 0.610 0.640 0.140.

MBR30100PT Features

* Metal of silicon rectifier, majority carrier conducton

* Guard ring for transient protection

* Low power loss, high efficiency

* High current capability, low VF

* High surge capacity

* For use in low voltage, high frequency inverters, free whelling, and polarity protection
