MBR3040PT Schottky Barrier Rectifiers

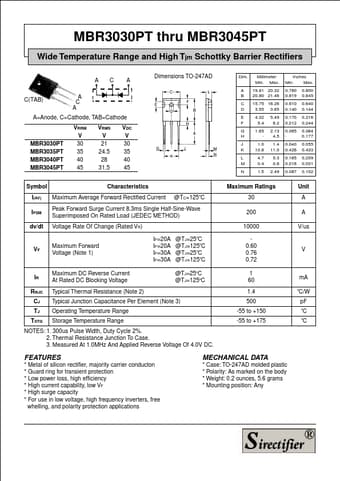

MBR3030PT thru MBR3045PT Wide Temperature Range and High Tjm Schottky Barrier Rectifiers AC A C(TAB) A C A A=Anode, C=Cathode, TAB=Cathode MBR3030PT MBR3035PT MBR3040PT MBR3045PT VRRM V 30 35 40 45 VRMS V 21 24.5 28 31.5 VDC V 30 35 40 45 Dimensions TO-247AD Dim. Millimeter Min. Max. A 19.81 20.32 B 20.80 21.46 C 15.75 16.26 D 3.55 3.65 E 4.32 5.49 F 5.4 6.2 G 1.65 2.13 H - 4.5 J 1.0 1.4 K 10.8 11.0 L 4.7 5.3 M 0.4 0.8 N 1.5 2.49 Inches Min. Max. 0.780 0.800 0.819 0.845 0.610 0.640 0..

MBR3040PT Features

* Metal of silicon rectifier, majority carrier conducton

* Guard ring for transient protection

* Low power loss, high efficiency

* High current capability, low VF

* High surge capacity

* For use in low voltage, high frequency inverters, free whelling, and polarity protection

MBR3030PT-Sirectifier.pdf

MBR3040PT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR3040PT, MBR3030PT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR3040PT, MBR3030PT

Manufacturer:

Sirectifier

File Size:

118.38 KB

Description:

Schottky barrier rectifiers.

Note:

This datasheet PDF includes multiple part numbers: MBR3040PT, MBR3030PT.
Please refer to the document for exact specifications by model.
