MBR3030PT - Schottky Barrier Rectifiers

MBR3030PT Description

MBR3030PT thru MBR3045PT Wide Temperature Range and High Tjm Schottky Barrier Rectifiers AC A C(TAB) A C A A=Anode, C=Cathode, TAB=Cathode MBR303.

MBR3030PT Features

* Metal of silicon rectifier, majority carrier conducton
* Guard ring for transient protection
* Low power loss, high efficiency
* High current capability, low VF
* High surge capacity
* For use in low voltage, high frequency inverters, free whelling, and polarity protection

MBR3030PT Applications

* MECHANICAL DATA
* Case: TO-247AD molded plastic
* Polarity: As marked on the body
* Weight: 0.2 ounces, 5.6 grams
* Mounting position: Any Unit A A V/us V mA oC/W pF oC oC MBR3030PT thru MBR3045PT Wide Temperature Range and High Tjm Schottky Barrier Rectifiers

📥 Download Datasheet

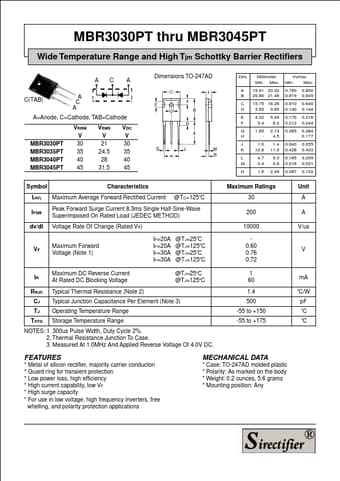

Preview of MBR3030PT PDF
datasheet Preview Page 2

Datasheet Details

Part number
MBR3030PT
Manufacturer
Sirectifier
File Size
118.38 KB
Datasheet
MBR3030PT-Sirectifier.pdf
Description
Schottky Barrier Rectifiers
