STPRF1620CT, STPRF1605CT Datasheet - Sirectifier

STPRF1620CT - Ultra Fast Recovery Diode

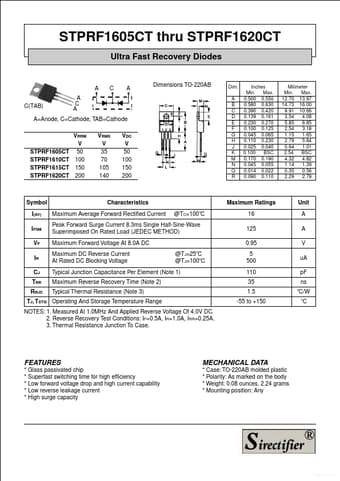

STPRF1605CT thru STPRF1620CT Ultra Fast Recovery Diodes Dimensions TO-220AB A C(TAB) A C A C A Dim.

A B C D E F G H J K M N Q R A=Anode, C=Cathode, TAB=Cathode VRRM V 50 100 150 200 VRMS V 35 70 105 140 VDC V 50 100 150 200 STPRF1605CT STPRF1610CT STPRF1615CT STPRF1620CT Inches Min.

Max.

0.500 0.550 0.580 0.630 0.390 0.420 0.139 0.161 0.230 0.270 0.100 0.125 0.045 0.065 0.110 0.230 0.025 0.040 0.100 BSC 0.170 0.190 0.045 0.055 0.014 0.022 0.090 0.110 Milimeter Min.

Max.

12.70 13.97 14.73

STPRF1620CT Features

* Glass passivated chip

* Superfast switching time for high efficiency

* Low forward voltage drop and high current capability

* Low reverse leakage current

* High surge capacity MECHANICAL DATA

* Case: TO-220AB molded plastic

* Polarity: As marked on the body

* Weigh

STPRF1605CT_Sirectifier.pdf

This datasheet PDF includes multiple part numbers: STPRF1620CT, STPRF1605CT. Please refer to the document for exact specifications by model.
