SGA-3263 Cascadable SiGe HBT MMIC Amplifier

The SGA-3263 is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring 1 micron emitters provides high FT and excellent thermal perfomance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction nonli.

SGA-3263 Features

* Now available in Lead Free, RoHS Compliant, & Green Packaging

* Broadband Operation: DC-5500 MHz

* Cascadable 50 Ohm

* Operates From Single Supply

* Low Thermal Resistance Package Applications

* PA Driver Amplifier

* Cellular, PCS, GSM, UMTS

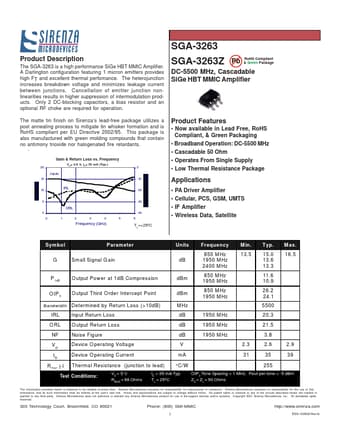

SGA-3263Z_SirenzaMicrodevices.pdf

SGA-3263 Datasheet Preview — This datasheet PDF includes multiple part numbers: SGA-3263, SGA-3263Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SGA-3263, SGA-3263Z

Manufacturer:

Sirenza Microdevices

File Size:

313.41 KB

Description:

Cascadable sige hbt mmic amplifier.

Note:

This datasheet PDF includes multiple part numbers: SGA-3263, SGA-3263Z.
Please refer to the document for exact specifications by model.
