SGA-3263Z Datasheet - Sirenza Microdevices

Cascadable SiGe HBT MMIC Amplifier

SGA-3263Z Features

* Now available in Lead Free, RoHS Compliant, & Green Packaging

* Broadband Operation: DC-5500 MHz

* Cascadable 50 Ohm

* Operates From Single Supply

* Low Thermal Resistance Package VD= 2.6 V, ID= 35 mA (Typ.) 0 GAIN 15 -10 Applications

SGA-3263Z General Description

The SGA-3263 is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring 1 micron emitters provides high FT and excellent thermal perfomance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction nonli.

SGA-3263Z Datasheet (313.41 KB)

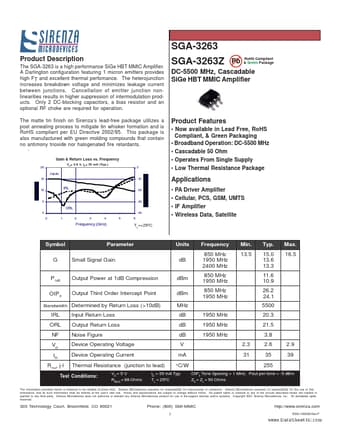

SGA-3263Z Datasheet Preview — Preview of SGA-3263Z PDF

Datasheet Details

Part number:

SGA-3263Z

Manufacturer:

Sirenza Microdevices

File Size:

313.41 KB

Description:

Cascadable sige hbt mmic amplifier.
