SGA-3363Z, SGA-3363 Datasheet - Sirenza Microdevices

SGA-3363Z, SGA-3363, Cascadable SiGe HBT MMIC Amplifier

Product .
The SGA-3363 is a high performance SiGe HBT MMIC Amplifier.

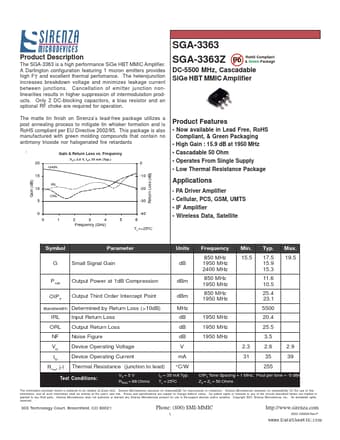

datasheet Preview Page 1 from Datasheet4u.com

SGA-3363_SirenzaMicrodevices.pdf

SGA-3363Z Datasheet Preview — This datasheet PDF includes multiple part numbers: SGA-3363Z, SGA-3363. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SGA-3363Z, SGA-3363

Manufacturer:

Sirenza Microdevices

File Size:

258.79 KB

Description:

Cascadable SiGe HBT MMIC Amplifier

Note:

This datasheet PDF includes multiple part numbers: SGA-3363Z, SGA-3363.
Please refer to the document for exact specifications by model.

Features

* Now available in Lead Free, RoHS Compliant, & Green Packaging
* High Gain : 15.9 dB at 1950 MHz
* Cascadable 50 Ohm
* Operates From Single Supply
* Low Thermal Resistance Package 20 GAIN VD= 2.6 V, ID= 35 mA (Typ. ) 0 -10 Return Loss (dB) 15 Gain (dB) IRL

Applications

* PA Driver Amplifier 10 ORL -20 -30 -40 0 1 2 3 4 Frequency (GHz) 5 6 5 0
* Cellular, PCS, GSM, UMTS
* IF Amplifier
* Wireless Data, Satellite TL=+25ºC Symbol G Parameter Small Signal Gain Units dB Frequency 850 MHz 1950 MHz 2400 MHz 850 MHz 1950 MHz 850 MHz
