VENUS634FLPx - 65 Channel Low Power GPS Receiver

SkyTraq

📥 Download Datasheet

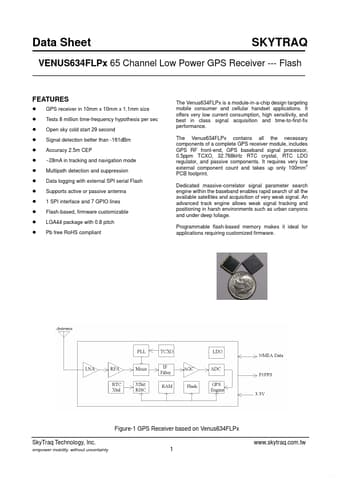

VENUS634FLPx Datasheet Preview — Preview of VENUS634FLPx PDF

Datasheet Details

Part number	VENUS634FLPx
Manufacturer	SkyTraq
File Size	236.77 KB
Description	65 Channel Low Power GPS Receiver
Datasheet	VENUS634FLPx-SkyTraq.pdf

VENUS634FLPx Product details

Description

Active LOW reset input, 3.3V LVTTL Main voltage supply input, 2.8V ~ 3.6V Not connected, empty pin General purpose I/O pin, 3.3V LVTTL General purpose I/O pin, 3.3V LVTTL General purpose I/O pin, 3.3V LVTTL Navigation status indicator or General purpose I/O.

Features

z z z z z z z z z z z z z GPS receiver in 10mm x 10mm x 1.1mm size Tests 8 million time-frequency hypothesis per sec Open sky cold start 29 second Signal detection better than -161dBm Accuracy 2.5m CEP ~28mA in tracking and navigation mode Multipath detection and suppression Data logging with external SPI serial Flash Supports active or passive antenna 1 SPI interface and 7 GPIO lines Flash-based, firmware customizable LGA44 package with 0.8 pitch Pb free RoHS compliant The Venus634FLPx is a mo.
