Venus638 GPS Module

Venus638 Description

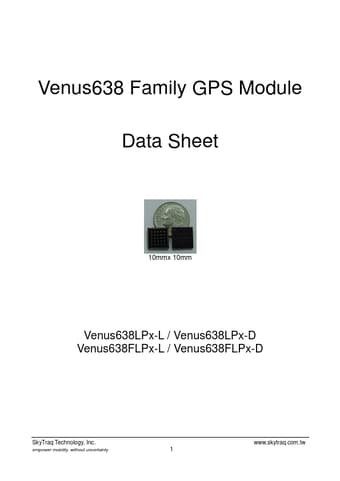

Venus638 Family GPS Module Data Sheet 10mmx 10mm Venus638LPx-L / Venus638LPx-D Venus638FLPx-L / Venus638FLPx-D SkyTraq Technology, Inc.empower mobi.

Venus638 Features

* GPS receiver in 10mm x 10mm x 1.3mm size Tests 8 million time-frequency hypothesis per sec Open sky cold start 29 second Signal detection better than -161dBm Accuracy 2.5m CEP 10Hz maximum update rate Multipath detection and suppression Data logging with external SPI serial Flash Supports active or

Venus638 Applications

* It offers very low current consumption, high sensitivity, and best in class signal acquisition and time-to-first-fix performance. The Venus638 contains all the necessary components of a complete GPS receiver module, includes 1.2dB cascaded system NF RF front-end, GPS baseband signal processor, 0.5p

📥 Download Datasheet

Preview of Venus638 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
Venus638
Manufacturer
SkyTraq
File Size
678.33 KB
Datasheet
Venus638-SkyTraq.pdf
Description
GPS Module
