Venus816 - Single-Chip GPS Receiver

SkyTraq

📥 Download Datasheet

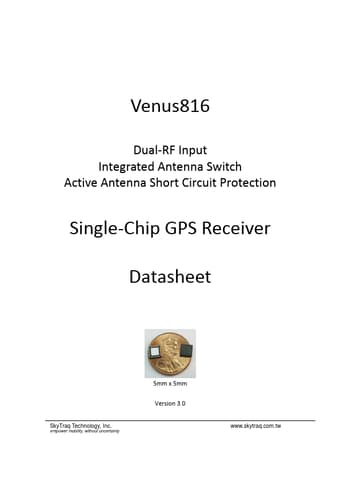

Venus816 Datasheet Preview — Preview of Venus816 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	Venus816
Manufacturer	SkyTraq
File Size	397.62 KB
Description	Single-Chip GPS Receiver
Datasheet	Venus816-SkyTraq.pdf

Venus816 Product details

Features

Integrated LNA with high-gain (20 dB typ. ) and low NF (0.9 dB typ. ) Cascaded system noise figure of 1.2 dB typical Support RF dual-input for passive antenna and active antenna Integrated antenna switching with active antenna current detection Integrated 50mA current limiting for active antenna biasing short circuit protection Support 16.367667MHz 0.5ppm and 2.5ppm TCXO.
