Venus838FLPx - GPS Receiver

SkyTraq

📥 Download Datasheet

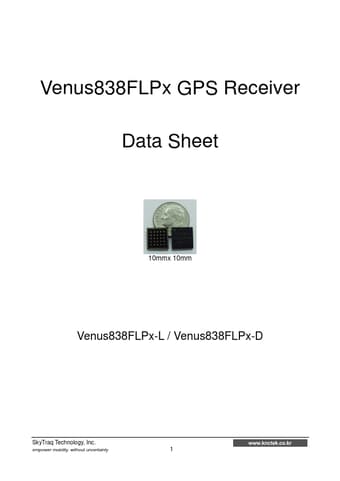

Venus838FLPx Datasheet Preview — Preview of Venus838FLPx PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	Venus838FLPx
Manufacturer	SkyTraq
File Size	1.68 MB
Description	GPS Receiver
Datasheet	Venus838FLPx-SkyTraq.pdf

Venus838FLPx Product details

Features

50Hz maximum update rate -148dBm cold start sensitivity -165dBm tracking sensitivity 29 second cold start TTFF 3.5 second TTFF with AGPS 1 second hot start 2.5m accuracy Multipath detection and suppression Jamming detection and mitigation QZSS and SBAS support 7-day extended ephemeris AGPS Self-aided ephemeris estimation 74mW full power navigation Works directly with active or passive antenna Supports external SPI flash memory data logging Complete receiver in 10mm x 10mm x 1.3mm size Contains L.
