Venus828F - Multi-GNSS Receiver Module

SkyTraq

📥 Download Datasheet

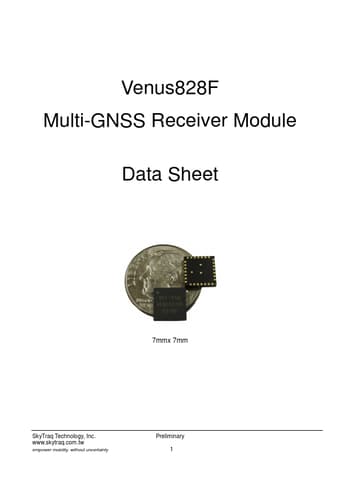

Venus828F Datasheet Preview — Preview of Venus828F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	Venus828F
Manufacturer	SkyTraq
File Size	436.22 KB
Description	Multi-GNSS Receiver Module
Datasheet	Venus828F-SkyTraq.pdf

Venus828F Product details

Features

Smallest self-contained multi-GNSS module Supports GPS, Beidou, QZSS, SBAS 20Hz maximum update rate -148dBm cold start sensitivity -165dBm tracking sensitivity 29 second cold start TTFF 3.5 second TTFF with AGPS 1 second hot start 2.5m accuracy Multipath detection and suppression Jamming detection and mitigation QZSS and SBAS support Self-aided ephemeris estimation Supports external SPI flash memory data logging Complete receiver in 7mm x 7mm x 1.4mm size Pb-free RoHS compliant Venus828F is a h.
