Venus838LPx - GPS Module

SkyTraq

📥 Download Datasheet

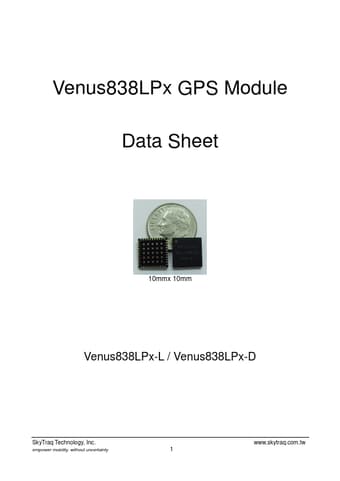

Venus838LPx Datasheet Preview — Preview of Venus838LPx PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	Venus838LPx
Manufacturer	SkyTraq
File Size	755.78 KB
Description	GPS Module
Datasheet	Venus838LPx-SkyTraq.pdf

Venus838LPx Product details

Features

40Hz maximum update rate -148dBm cold start sensitivity -165dBm tracking sensitivity 29 second cold start TTFF 3.5 second TTFF with AGPS 1 second hot start 2.5m accuracy Multipath detection and suppression Jamming detection and mitigation QZSS and SBAS support 7-day extended ephemeris AGPS 60mW full power navigation Works directly with active or passive antenna Complete receiver in 10mm x 10mm x 1.3mm size Contains LNA, SAW Filter, TCXO, RTC Xtal, LDO Requires only antenna and power to work Pb-f.
