Venus638FLPx - GPS Receiver

SkyTraq

📥 Download Datasheet

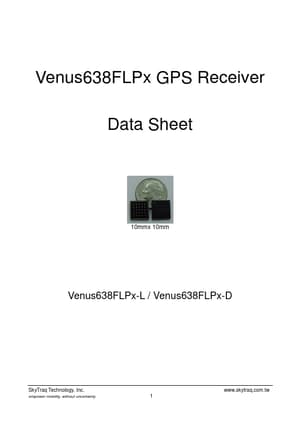

Venus638FLPx Datasheet Preview — Preview of Venus638FLPx PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	Venus638FLPx
Manufacturer	SkyTraq
File Size	608.64 KB
Description	GPS Receiver
Datasheet	Venus638FLPx-SkyTraq.pdf

Venus638FLPx Product details

Features

20Hz update rate -148dBm cold start sensitivity -165dBm tracking sensitivity 29 second cold start TTFF 3.5 second TTFF with AGPS 1 second hot start 2.5m accuracy Multipath detection and suppression Jamming detection and mitigation SBAS (WAAS / EGNOS) support 7-day extended ephemeris AGPS 67mW full power navigation Works directly with active or passive antenna Internal flash for optional 75K point data logging Supports external SPI flash memory data logging Complete receiver in 10mm x 10mm x 1.3m.
