AP119-89 - GaAs ic DCS1800/1900 Power Amplifier

AP119-89 Description

GaAs IC DCS1800/1900 Power Amplifier AP119-89 .
The AP119-89 is a low cost IC power amplifier designed for the 1700. 1900 MHz frequency band.

AP119-89 Features

* +3.5 V Operation
* Output Power of 33 dBm
* Power Added Efficiency of 50%
* Outstanding Efficiency vs. Supply Voltage
* Thermally Enhanced Package (SSOP-16 with Exposed Pad)
* Wide Power Control Range (50 dB)
* External Matching Elements Optimize Performance for Either

📥 Download Datasheet

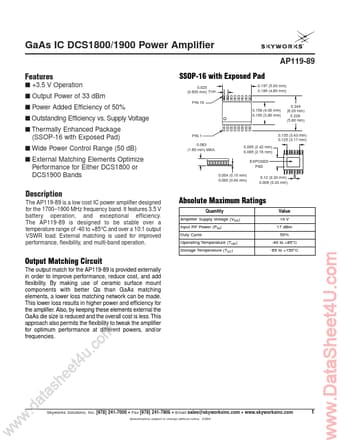

Preview of AP119-89 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP119-89
Manufacturer
Skyworks Solutions
File Size
84.94 KB
Datasheet
AP119-89_AlphaIndustries.pdf
Description
GaAs ic DCS1800/1900 Power Amplifier
