SKY13415-485LF 0.1 to 3.8 GHz SP5T Antenna Switch

The SKY13415-485LF is a single pole, five-throw (SP5T) antenna switch with an internal 50 Ω termination. The high linearity performance and low insertion loss achieved by the SKY13415-485LF make it.

SKY13415-485LF Features

* Broadband frequency range: 0.1 to 3.8 GHz

* Low insertion loss: 0.45 dB typical @ 2.7 GHz

* High isolation: >30 dB @ 2.7 GHz

* Internal 50 Ω port to control diversity antenna impedance when device is not in use

* Integrated logic

* Small QFN (14-pin, 2.0 x 2.0 mm) package (

SKY13415-485LF-SkyworksSolutions.pdf

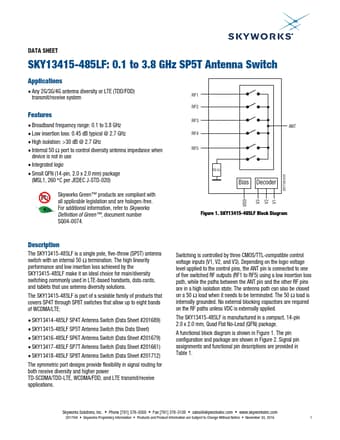

SKY13415-485LF Datasheet Preview — Preview of SKY13415-485LF PDF

Datasheet Details

Part number:

SKY13415-485LF

Manufacturer:

Skyworks Solutions

File Size:

247.72 KB

Description:

0.1 to 3.8 ghz sp5t antenna switch.
