SKY13416-485LF Datasheet - Skyworks Solutions

SKY13416-485LF 0.1 to 3.8 GHz SP6T Antenna Switch

The SKY13416-485LF is a single pole, six-throw (SP6T) antenna switch. The high linearity performance and low insertion loss achieved by the SKY13416-485LF make it an ideal choice for main/diversity switching commonly used in LTE-based handsets, data .

SKY13416-485LF Features

* Broadband frequency range: 0.1 to 3.8 GHz

* Low insertion loss: 0.5 dB typical @ 2.7 GHz

* High isolation: >26 dB @ 2.7 GHz

* Integrated logic

* Small QFN (14-pin, 2.0 x 2.0 mm) package (MSL1, 260 C per JEDEC J-STD-020) RF1 RF2 RF3 RF4 RF5 RF6 ANT VDD V3 V2 V1 201679-001 S

SKY13416-485LF-SkyworksSolutions.pdf

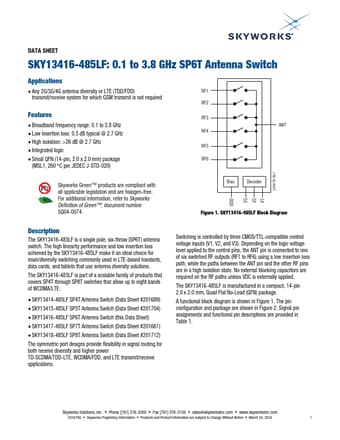

Preview of SKY13416-485LF PDF
SKY13416-485LF Datasheet Preview Page 2 SKY13416-485LF Datasheet Preview Page 3

Datasheet Details

Part number:

SKY13416-485LF

Manufacturer:

Skyworks Solutions

File Size:

274.06 KB

Description:

0.1 to 3.8 ghz sp6t antenna switch.
