Datasheet Details
| Part number | SD11428 |
|---|---|
| Manufacturer | Solitron Devices |
| File Size | 90.57 KB |
| Description | 1200V Silicon Carbide IGBT |
| Datasheet |
 SD11428 Datasheet
|
|
|
| Part number | SD11428 |
|---|---|
| Manufacturer | Solitron Devices |
| File Size | 90.57 KB |
| Description | 1200V Silicon Carbide IGBT |
| Datasheet |

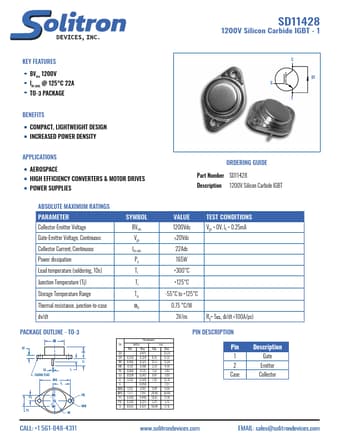

SD11428 Datasheet
|
|
|
|
1200V Silicon Carbide IGBT ABSOLUTE MAXIMUM RATINGS PARAMETER Collector-Emitter Voltage Gate-Emitter Voltage, Continuous Collector Current, Continuous Power dissipation Lead temperature (soldering, 10s) Junction Temperature (Tj) Storage Temperature Range Thermal resistance, junction-to-case dv/dt SYMBOL BVces Vge Ids (on) Pd TL Tj Tst Θjc VALUE 1200Vdc ±20Vdc 22Adc 165W +300°C TEST CONDITIONS Vge = OV, lC = 0.25mA +125°C -55°C to +125°C 0.75 °C/W 3V/ns Rg= 5Ω, di/dt
